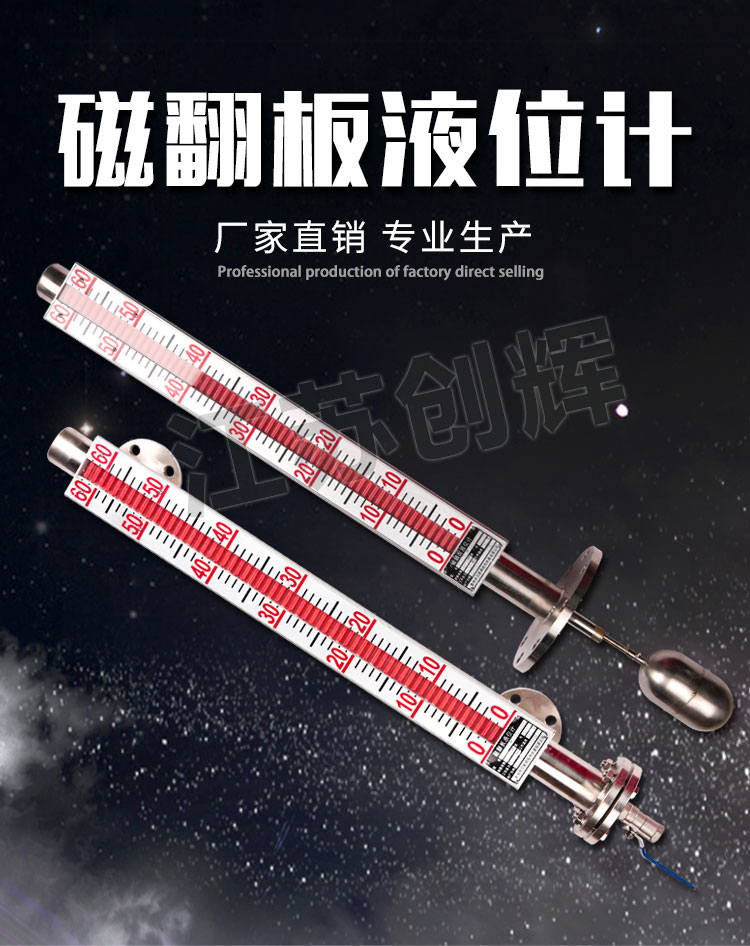

Anti-corrosion magnetic flap level meter introduction:
The company also specializes in the production of stainless steel lined with PTFE anti-corrosion magnetic flip-flop level gauge using stainless steel body lined with polypropylene (PP) and polytetrafluoroethylene (PTFE) process, has high structural strength and corrosion resistance, can be applied to hydrochloric acid and other acidic liquids, alkaline liquids and organic solvents. However, it is not suitable for the measurement of concentrated nitric acid, chlorine-containing solvents, aromatics, aliphatic and other media liquids. Side-mounted lined corrosion-resistant magnetic flip-flop level meter has stainless steel body lined with polytetrafluoroethylene (PTFE) and stainless steel lined with polypropylene (PP) two kinds, suitable for corrosive media measurement. Side-mounted lined magnetic flip-flop level gauge (PTFE) for corrosive media and working temperature and high temperature occasions of liquid level measurement, the use of advanced stainless steel lined with polytetrafluoroethylene tensile flap new technology, reliable structure, long service life. It is the best choice for level measurement of hydrofluoric acid and other strong corrosive media. Side-mounted lined magnetic flip-flop level meter (PP) for hydrochloric acid, dilute sulfuric acid and other inorganic corrosive liquid measurement, due to the use of imported high-strength can be close to the metal, especially the PPR good insulation, the product is suitable for outdoor water tank level measurement, in winter, the internal will not freeze. But not as good as PTFE lining temperature and pressure resistance, temperature and pressure is lower when using this product is more cost-effective. Users can according to engineering needs, with the use of remote transmitter, can realize the local digital display, as well as output 4 ~ 20mA standard remote signal, in order to match the recording instrumentation, or industrial process control needs. It can also be used with magnetic control switches or proximity switches, etc., to monitor and alarm the liquid level or to control the liquid inlet and outlet equipment.
Technical parameters
1、Material of the body: 304, 316, 316L, PP plastic
2、Medium density: 0.49 ~ 1.99 (g/cm3)
3、Medium viscosity: ≤0.019Pa.S
4、Measuring accuracy: ±10mm
5、Protection grade: IP65
6、Explosion-proof grade: ibⅡCT4 (intrinsically safe), dⅡBT4 (explosion-proof)
7、Transmission mode: 4-20ma.
III. Product Selection
| CH-UHZ | Magnetic Flip-Flop Level Gauge | |||||||
| Code | Display Mode | |||||||
|
|
In-situ display | |||||||
|
|
Local display + 4～20mA remote transmission | |||||||
|
|
nicknames | Installation | ||||||
| C | side-mounted | |||||||
| D | top-loading | |||||||
|
|
nicknames | typology | ||||||
| not have | karyotype (chemistry) | |||||||
| W | Insulation type | |||||||
| J | Anti-corrosion type | |||||||
| S | Frostproof | |||||||
| Z | Thermal insulation and anti-corrosion type | |||||||
| Y | Top-mounted corrosion-resistant type | |||||||
|
|
nicknames | Alarm control | ||||||
| 0 | no alarm | |||||||
| 1 | With upper limit alarm | |||||||
| 2 | With lower limit alarm | |||||||
| 3 | With lower limit alarm | |||||||
|
|
nicknames | Float Material | nicknames | Body Material | ||||
| P | stainless steels | P | stainless steels | |||||
| L | rustproof aluminum | L | rustproof aluminum | |||||
| T | titanium (chemistry) | T | titanium (chemistry) | |||||
| S | PVC plastic | S | PVC plastic | |||||
| F | fluoroplastic wrap | F | fluoroplastic pipe | |||||
|
|
|
PF | Lined with PTFE | |||||
|
|
|
PP | Acrylic lined | |||||
|
|
|
PE | Vinyl lined | |||||
|
|
Code | Data to be marked | ||||||
| B1 | Marking flange standard, through diameter, pressure class | |||||||
| B2 | Labeling of the actual operating temperature | |||||||
| B3 | Labeling of actual operating pressure | |||||||
| B4 | Labeling of the density of the measuring medium | |||||||
| B5 | Mark order length, or provide flange spacing | |||||||
IV. Selection specification
| Top-mounted Magnetic Flap Level Gauge | Side-mounted Magnetic Flap Level Gauge | ||||||||
|
|
||||||||
| Pseudolaric acid | Magnetic Flip-Flop Level Gauge | Measurement range | 150-15000MM | ||||||
| Medium temperature | -80℃~450℃ | Medium Pressure | 1.6-16MPA | ||||||
| Installation | Side/top mounting (optional) | Standard Flanges | DN20/DN25(Optional) | ||||||
Note: Selection should be based on the actual conditions to determine the site, different conditions selection is not the same, selection example: Model UHZ-C, side-mounted, medium alcohol, material 304, without display, with remote transmission, range 0 ~ 1500mm, temperature 180 ℃, flange DN25, (if the chemical industry, “must be”) (If it is a chemical enterprise, “must” be made into explosion-proof type)
Installation, use and maintenance
1, first check the level meter label data and ordering requirements are consistent with the distance from the level meter around the 200mm range shall not have the excitation of iron and other magnetic substances, otherwise it will affect the normal operation of the level meter.
2, the level meter and the container should be equipped with a shut-off valve between the maintenance and cleaning to cut off the material. The installation of the body must be vertical, *** offset angle ≤ 3 °. Measuring range > 4m in the process of installation and use should increase the intermediate support point.
3, the liquid level meter into operation, should first open the upper flange gas-phase valve, and then slowly open the lower flange liquid-phase valve, so that the medium slowly flow into the cylinder so that the flip column (plate) one by one tracking instructions, and adjust the zero level with the adjusting screw.
4、Level meter guard conduit and the main conduit must be kept vertical.
5、After the installation is completed, it is necessary to guide the flip column of the display with magnet once so that it shows red above zero level and white below zero level.
