Small high-temperature pressure transmitter selects high-precision, high-stability pressure sensor components, after highly reliable amplification circuit and precision temperature compensation, the measured medium's adiabatic or gauge pressure is converted into 4-20mA, 0-5VDC, 0-10VDC and 1-5VDC and other standard electrical signals.
Small high-temperature pressure transmitter compact size, all stainless steel shell, easy to install in complex places, process interface can be customized according to user requirements. It adopts universal DC24v power supply and outputs 2-wire 4~20mA signal with stable and reliable performance. Can be applied to the furnace, flue positive and negative pressure measurement. Small high-temperature pressure transmitter measuring pressure shall not be higher than 150% of the rated pressure, static pressure shall not be higher than 20KPa, differential pressure type high pressure end marked H, low pressure end marked L. ZR804H small high-temperature pressure transmitter only pressure type can be selected from the range from 0-200Pa ~ 60MPa, stainless steel shell isolation anticorrosive, compact design, installation is very simple.
Small high-temperature pressure transmitter is the use of foreign isolated sensor chip, developed by our factory a new type of pressure transmitter, using diffusion silicon or ceramic pressure sensor core, temperature compensation, digital signal processing and other advanced technologies and processes. It has the characteristics of high precision, good reliability, fast response speed, stable performance and so on. Small high-temperature pressure transmitter structure is simple, easy to install, use, maintenance, is the pressure detection, control instruments; instrumentation anti-interference ability, suitable for long-distance signal transmission, by the majority of designers and users welcome.
Features are mainly:
◆ Laser tuning resistance temperature compensation
◆ Zero position can be migrated
◆ Zero, range adjustable
◆ High precision, high reliability, high stability
◆ Anti-Radio Frequency Interference
Power supply reverse polarity and over-voltage protection.
◆ Isolation anti-corrosion, intrinsically safe and explosion-proof.
◆ Direct process installation, on-site pointer or digital display.
◆ Ceramic capacitance -2.5 ~ 2.5KPa, 0 ~ 7MPa
◆ The armature color to pressure diffusion silicon ceramic piezoresistive 0~60MPa
◆ Diffuse silicon ceramic piezoresistive -0.1~0.1MPa, 0~60MPa

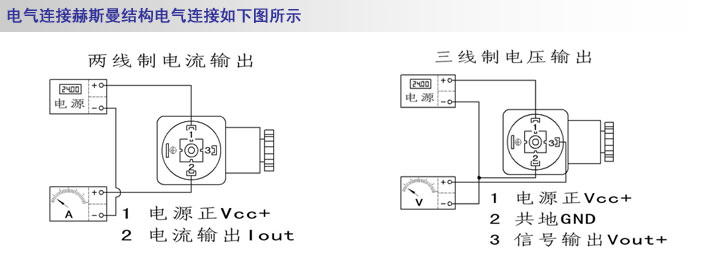

Small High Temperature Resistant Pressure Transmitter_Direct Mount Pressure Sensor Wiring Diagram:

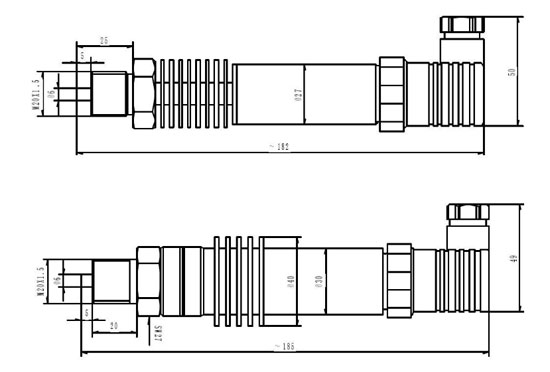

小型耐高温压力变送器_直装式压力传感器外形尺图：
Small high-temperature-resistant pressure transmitter _ direct mount pressure sensor installation requirements:
1, choose easy to operate and maintain the place for installation;
2, should be installed as far away as possible from the source of vibration;
3, should be as far away as possible from the heat source of the place;
4, ZUI good through the valve and measuring pipe connection:
5, installation with a wrench to clamp the transmitter hexagonal;
6, operation of the Hirschmann connector and shell connections can not be rotated;.
7, choose indoor installation, such as outdoor installation to take measures to prevent rain penetration burned circuit board.
Small high-temperature pressure transmitter_direct mounted pressure sensor performance parameter table:
| Adoption of imported original ceramic piezoresistive sensors | Highly integrated sensor and amplifier circuits |
| All stainless steel encapsulated in one piece | No circuit zero and gain adjustment required |
| Compact, waterproof and dustproof | Pressure range：0～100kPa…1MPa…10MPa…50MPa…70MPa |
| Overload capacity: 2 times | Measuring medium: gas and liquid that do not corrode stainless steel |
| Operating voltage 24VDC (9 to 36V) | Output signal: 4～20mA |
| Combined accuracy 0.5% F.S | Non-linearity ±0.5% F.S. |
| Output form 2-wire | Operating temperature range: high-temperature type can be measured: 300℃. |
| Temperature compensation range: 25～80°C | Long-term stability: ≤±0.5% F.S/year |
| Temperature drift: 0.5% F.S/°C | Thread interface M20×1.5 (other forms specify when ordering) |
