Flat Membrane Pressure Transmitter_Sanitary Pressure Transmitter Overview:
Flat membrane pressure transmitter adopts diaphragm type principle, the medium is not in direct contact with the sensor way, indirectly transmit the feeling to the pressure; process interface with clamp type, flange type, threaded type can be selected; sensor diaphragm type processing can prevent scaling and viscous liquid clogging and other problems, is widely used in food, medicine, sanitation and brewing and other industrial occasions.
Flat membrane pressure transmitter features:
▲Using imported diffusion silicon sensor ;
▲Simple structure, compact size, easy to install;
▲Can be equipped with on-site display LCD meter head;
▲Can measure gauge pressure, absolute pressure and negative pressure;
▲Applicable to gas and liquid media compatible with the material of the contact part;
Flat membrane pressure transmitter_Sanitary pressure transmitter main technical parameters:
▲Measuring range:-0.1～0～60Mpa;
▲Measuring accuracy: 0.2%, 0.5%;
▲Output signal: 4～20 mA, 1～5VDC or 1～10VDC;
▲Overload capacity: <1.5 times the range;
▲Temperature drift: 0.03%FS/℃;
▲Power supply:12～36VDC typical 24V;
▲Medium temperature: -20～75℃;
▲Ambient temperature: -30℃～80℃;
▲Measuring medium: gases and liquids that are not corrosive to stainless steel;

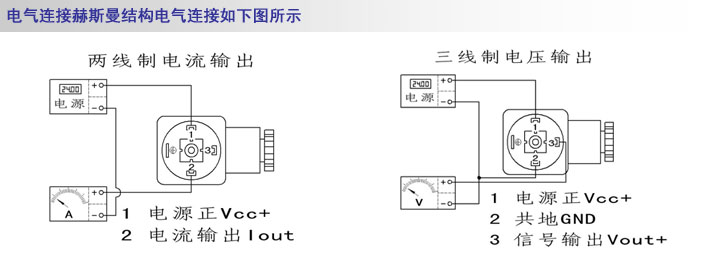

Sanitary pressure transmitter wiring diagram:
