ZC-KYJV Cross-linked polyethylene insulated PVC sheathed control cable

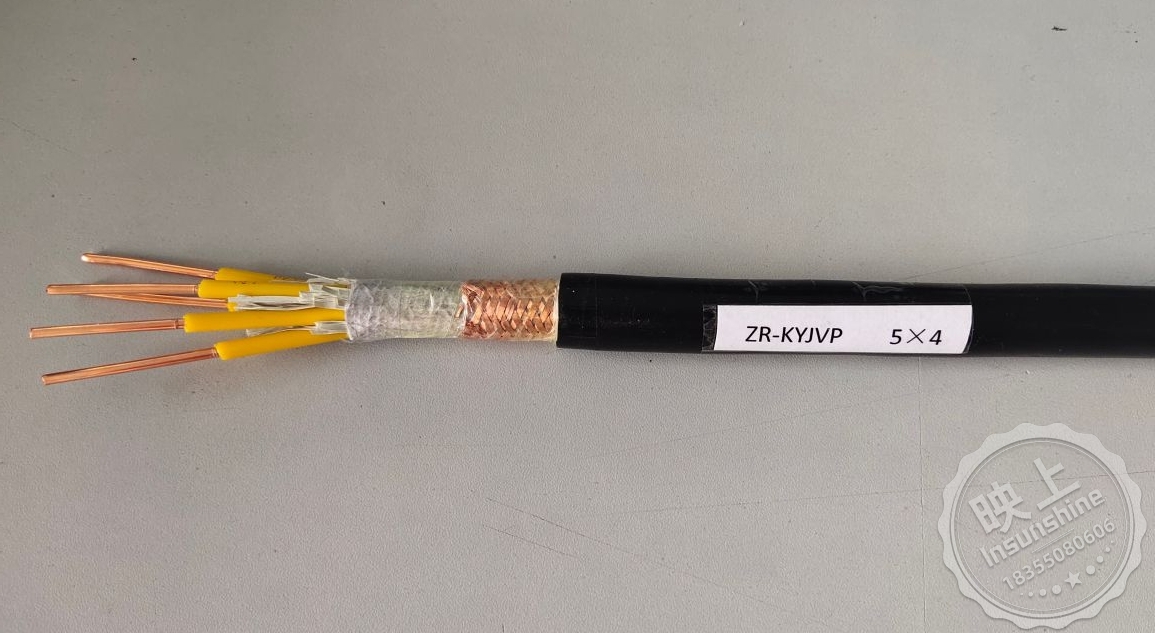

ZR-KYJVP 5*4 Cross-linked Polyethylene Insulated PVC Sheathed Copper Wire Shielded Flame Retardant Control Cable
Cross-linked control cables:
Copper core cross-linked polyethylene insulated PVC sheathed flame retardant control cables, I recommend this product for you for the rated voltage 450/750V and below control, supervisory circuits and protection lines and other occasions to use the control cable. Polyvinyl chloride insulated and sheathed control cables are general-purpose, according to user requirements for the production of control cables for different occasions.
Execution standard:
GB/T 9330-2008. flame retardant cables should also comply with the technical conditions of IEC337-8 standard.
Rated voltage: U0/U is 450/750V.
The long-term operating temperature of the conductor core is 70℃ and 95℃, and the cable laying temperature is not lower than 0℃.
The recommended allowable bending radius of the cable is as follows:
Unarmored cable, should not be less than 6 times the outer diameter of the cable;
Armored or copper tape shielded cable, shall be not less than 12 times the outer diameter of the cable;
Shielded flexible cables, not less than 6 times the outer diameter of the cable.
PE insulation PVC insulation F insulation G insulation (according to customer requirements)
Fire-resistant: NH, steel tape armored: 22, steel wire armored: 32
Flame retardant grade: ZA (Class A flame retardant), ZB (Class B flame retardant), ZC (Class C flame retardant), ZR (flame retardant)
Shielding options: P copper wire, P1 tinned, P2 copper tape, P3 aluminum foil
Conductors such as soft structure plus R
stands for the model number:
KYJV and other instrumentation cables, etc.
KYJV cross-linked polyethylene insulated PVC sheathed control cable
KYJV22 cross-linked polyethylene insulated PVC sheathed steel tape armored control cable
KYJV32 cross-linked polyethylene insulated PVC sheathed steel wire armored control cable
KYJVP Cross-linked polyethylene insulated PVC sheathed braided shielded control cable
KYJVP22 Cross-linked polyethylene insulated PVC sheath braided shielded armored steel tape control cable
KYJVP2 cross-linked polyethylene insulated PVC sheathed copper tape shielded control cable
KYJVP2-22 Cross-linked polyethylene insulated PVC sheathed copper tape shielded armored steel tape control cable
KYJVR cross-linked polyethylene insulated PVC sheathed control flexible cable
KYJVRP Cross-linked polyethylene insulated PVC sheathed braided shield control flexible cable
ZR-KYJV Cross-linked polyethylene insulated PVC sheathed flame retardant control cable
ZR-KYJV22 Cross-linked polyethylene insulated PVC sheathed steel tape armored flame retardant control cable
