1、Application

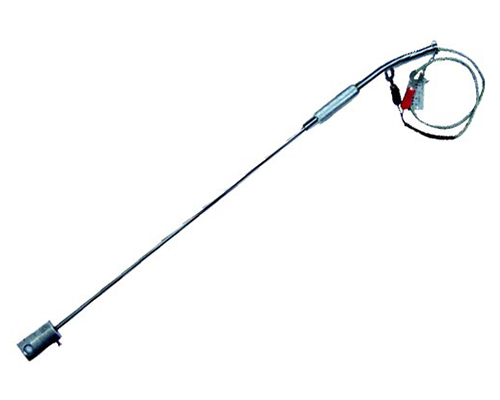

Suitable for power plant boiler wall, tube wall and other cylindrical surface measurement.
2、Main technical parameters
Precision level: Ⅰ, Ⅱ level
Bending radius: R ≥ 5D
Nominal pressure: atmospheric pressure
3、Model and specification
| model number | index number | Temperature range ℃ | Measuring end form | Specification | |
| L | L1 | ||||
|
WRNK-191M WRNK2-191M |
K | 0 — 800 | insulated |
1000 2000 4000 5000 8000 15000 25000 |
1000 2000 4000 5000 8000 15000 25000 |
|
WREK-191M WREK2-191M |
E | 0 — 600 | |||
|
WRNK-192M WRNK2-192M |
K | 0 — 800 | jacketed | ||
|
WREK-192M WREK2-192M |
E | 0 — 600 | |||
1) Thermocouple class I according to the agreement ordering
2) The material of protection tube is 1Cr18Ni9Ti, and the rest of materials are ordered according to the agreement.
4、Mounting form and size
Installation method: directly welded to the furnace wall, M8 screw fastening.
