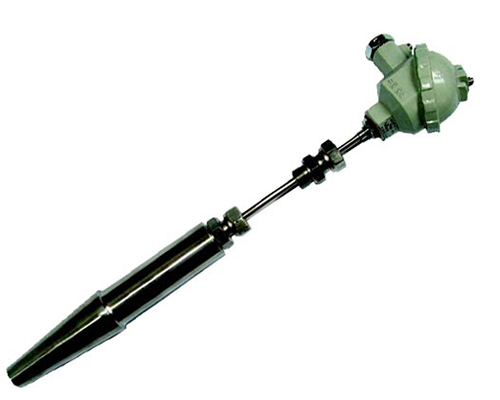

1、Application
Suitable for power plant boiler roof and other long-distance, high-pressure temperature measurement occasions.
2、Main technical parameters
Electrical outlet: M16x1.5
Connection size: M16x1.5
Protection grade: IP65
3、Model and specification
| Model No. | index number | Temperature range ℃ | Nominal pressure | flow rates | Specification (L) | Specification (l) |
|
WRN-0313T WRN2-0313T |
K | 0-800 | ≤ 30MPa | ≤ 100m/s |
1000 2000 3000 4000 5000 6000 8000 10000 15000 20000 25000 |
50 100 150 |
|
WREK-0313T WREK2-0313T |
E | 0-600 | ||||
|
WRNK-0913T WRNK2-0913T |
K | 0-800 | ||||
|
WREK-0913T WREK2-0913T |
E | 0-600 |
1) Thermocouple class I according to the agreement ordering
2) The material of protection tube is 1Cr18Ni9Ti, the rest of the material is according to the agreement.
