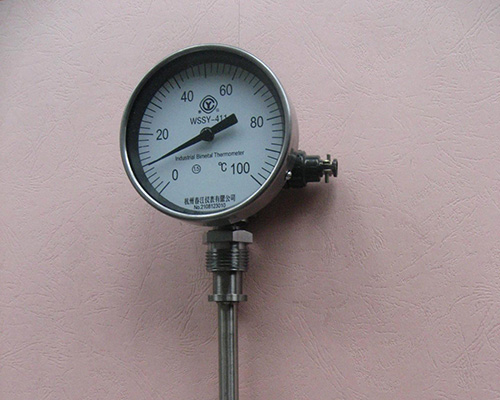

Remote transmission integrated bimetal thermometer WSSE-401

Remote bimetal thermometer is a combination of RTD or thermocouple signal transmission function and bimetal thermometer on-site indication function, which can meet the needs of on-site temperature measurement, but also meet the needs of long-distance transmission, remote bimetal thermometers can be directly measured in a variety of production processes within the range of -40 ~ +600 ° C liquids, vapors and gases, as well as temperature measurement of the surface of solids.

  Remote transmission integrated bimetal thermometer WSSE-401 performance characteristics:

  1, with a small temperature measurement probe, high sensitivity, linear scale, long life and so on.

  2, with remote output resistance signal (PT100), shock resistance, corrosion resistance and high-power switching signals and other functions.

  3, the structure of the same form and international similar products, can replace the imported.

  Remote integrated bimetal thermometer WSSE-401 technical parameters:

  1、Temperature measurement range -40～600℃.

  2、Ambient temperature -10～55℃

  3、Relative humidity ≤95%.

  4、Accuracy level 1.5

  5、Time constant ≤60S

  6、Probe pressure ≤6Mpa

  7、Probe diameter: φ8-10mm, movable external thread: M27 * 2

  8、Resistance thermistor PT100(single or double output) or 4-20mA current output.

  9、Protection level: IP55
