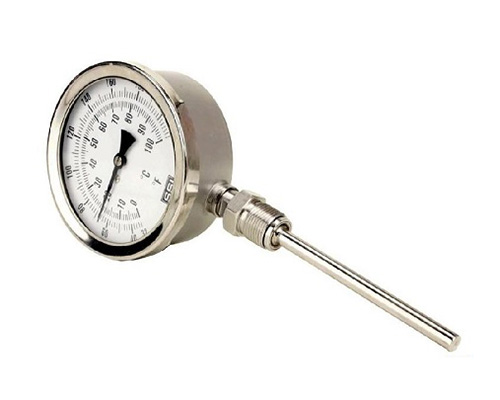

Bimetal thermometer with thermocouple (resistance) applications
Bimetal thermometer with thermocouple (resistance) integrated way, not only to meet the needs of on-site temperature measurement, but also to meet the needs of long-distance transmission. Can be directly measured in a variety of production processes within the range of -80 ℃ ~ +500 ℃ liquid, steam and gas media and solid surface temperature measurement.
With thermocouple (resistance) bimetallic thermometer technical parameters 1.Scale disk nominal diameter: 100,1502.Thermal response time: ≤ 40s
3. Precision level: (1.0), 1.5 4. Thermocouple; I level, 1.5 ℃; Ⅱ level, 2.5 ℃ 5. RTD: A level, ± (0.15 + 0.005 ItI) B level, ± (0.30 + 0.005 ItI) 6. Protection level: IP55
Bimetal thermometer with thermocouple (resistance) shape and size
| Format | D | A | B | E | d |
| radial | 105 | 23 | 73 |
|
Φ10
Φ12
Φ14 |
| 155 | 23 | 73 |
|
||
| axial | 105 | 50 | 110 | 34 | |
| 155 | 50 | 110 | 34 | ||
| gimbal | 105 | 23 | 178 | 120 | |
| 155 | 23 | 178 | 120 | ||
| Electrical contact axial type | 105 | 40 | 135 |
|
|
| Electric contact radial type | 105 | 72 | 150 | 42 | |
| Electric contact universal type | 105 | 40 | 175 | 98 |
Bimetal thermometer with thermocouple (resistance) models and specifications
| Model No. | Graduations | Temperature range℃ | Accuracy Class | Protective Tube Material | Insertion length |
| WSSE-401 | E |
-80-+40 -40-+80 0-50 0-100 0-150 0-200 0-300 0-400 0-500 |
1．5 |
1Cr18Ni9Ti
304
316
316L
哈氏C-276 |
150 200 300 400 500 750 1000 |
| WSSE-501 | |||||
| WSSE-411 | |||||
| WSSE-511 | |||||
| WSSE-481 | |||||
| WSSE-581 | |||||
| WSSP-401 | Pt100 | ||||
| WSSP-501 | |||||
| WSSP-411 | |||||
| WSSP-511 | |||||
| WSSP-481 | |||||
| WSSP-581 | |||||
| WSSXE-401 | E | ||||
| WSSXP-401 | Pt100 | ||||
| WSSXE-411 | E | ||||
| WSSXP-411 | Pt100 | ||||
| WSSXE-481 | E | ||||
| WSSXP-481 | Pt100 |
With thermocouple (resistance) bimetallic thermometer Selection Notes: Model Thermocouple (resistance) graduation No. Thermocouple (resistance) accuracy level
