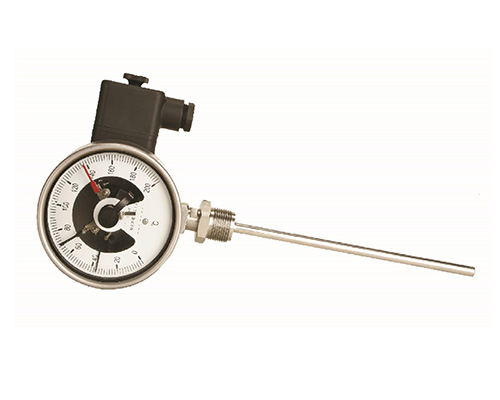

Product Name: Electrical contact bimetal thermometer
Product Description.
Application
The electric contact bimetal thermometer is used in the production site for automatic temperature control and alarm. Can be directly measured in a variety of production processes -80 ℃ - +500 ℃ range of liquid, steam and gas medium temperature.
Main features
On-site temperature display, intuitive and convenient.
With automatic power cut off and alarm function.
Safe and reliable, long service life
A variety of structural forms, can meet different requirements
| Working Principle |
| The electric contact bimetal thermometer is utilized to drive the contact change when the temperature changes, when it contacts or disconnects with the upper and lower limit contacts at the same time, it makes the relay in the circuit operate, so as to control and alarm automatically. |
| Main technical parameters |
|
Product implementation standard: JB/T8803-1998 GB3836-83 Nominal diameter of dial: 100 Precision grade: 1.0, 1.5 Thermal response time: ≤40s Protection grade: IP55 Normal working atmospheric conditions: temperature -25-+55℃ relative humidity ≤85﹪. Set point error: the set point error should not exceed 1.5 times of the basic error limit. Switching difference: the switching difference error should not exceed 1.5 times of the basic error limit.
|
