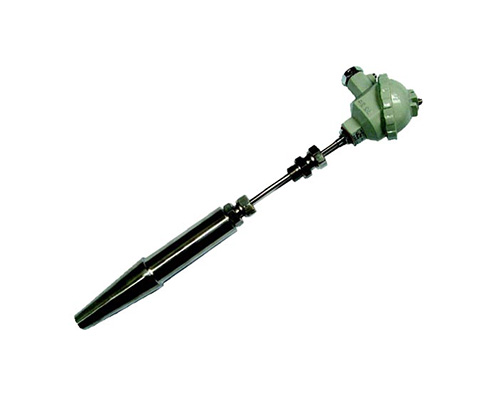

Product Name: Furnace top thermocouple/thermistor
Product Description.



1、Application

Suitable for power plant boiler roof and other long-distance, high-pressure temperature measurement occasions.

2、Main technical parameters

Electrical outlet: M16x1.5

Connection size: M16x1.5

Protection grade: IP65





3、Model and specification

Model No. index number Temperature range ℃ Nominal pressure flow rates Specification (mm)
L l
WRN-0313T
WRN2-0313T
K 0-800 ≤30MPa ≤100m/s
1000
2000
3000
4000
5000
6000
8000
10000
15000
20000
25000
50
100
150
WREK-0313T
WREK2-0313T
E 0-600
WRNK-0913T
WRNK2-0913T
K 0-800
WREK-0913T
WREK2-0913T
E 0-600

1）Thermocouple I level according to the agreement ordering

(2) The material of protection tube is 1Cr18Ni9Ti, the rest of the material according to the agreement order.
