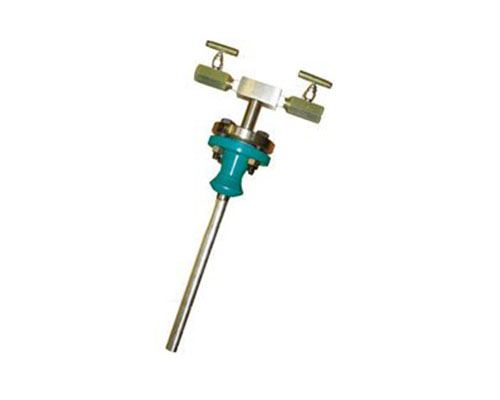

KF-ANB series of Anioba flowmeter (also known as flute homogeneous tube flowmeter and Toba tube flowmeter) belongs to the differential pressure type flowmeter. Anuba flowmeter is a Pitot tube measuring principle to measure the difference in pressure between the dynamic pressure upstream of the retaining body and the static pressure downstream, so as to achieve the purpose of measuring the flow rate. Measuring pipe diameter between DN20 and DN12000. The flow meter of Anioba is mainly used for the measurement of various energy sources such as liquids, fuel gases, vapors and gases in industrial processes with high stability and repeatability. The design theory is in line with the principle of Burdock's effort equation, and can be used JJG/640-90 regulations for testing.
Uses and characteristics
The flowmeter of Anioba has become an ideal product to replace the orifice plate because of its easy installation, small pressure loss, high strength, no wear and tear, no leakage and so on. Can be widely used in industrial and mining enterprises of blast furnace gas, compressed air, steam and other liquids, gas flow measurement.
1 Specialized internal secondary averaging structure provides high accuracy (reading ±1%) and high repeatability (±0.1%).
2 outer impact tube using a block of material processing and production of non-welded, compared with similar products welded by the double-body structure naturally has a higher strength, but also to facilitate the selection of high-temperature, corrosion-resistant materials.
a honeycomb hexagonal stabilization structure, resulting in a professional shape of the distribution of the beam to ensure the stability of the low-pressure signal, resulting in a higher differential pressure than similar products to improve the range ratio.
bApplicable to square or rectangular pipelines.
c For similar products in the measurement of dirty media in the inevitable clogging problem, there are online can be pulled out type or provide manual and automatic blowing program and device, to achieve non-stop maintenance.
d RPM tube + three valves + temperature and pressure compensation + transmitter, composed of an integrated structure, easy to use.
e No flow coefficient drift, long-term stability.
f Specialized in providing intuitive resonance check, to ensure long-term stable operation.
g small pressure loss low energy consumption, energy saving effect
h easy installation to save labor, low price and quick delivery (1 week)
