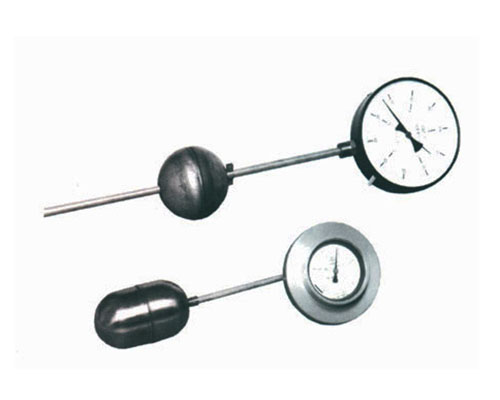

Float continuous level sensor, is to transform the liquid level signal into 4~20mA continuous current signal or resistance signal, connected to the secondary display instrument or control room through cable for centralized indication and observation. It consists of body, float, flange or thread and liquid level transmitter. It can be widely used in petroleum, chemical, rubber, medicine, ship, military, electric power, food, water treatment and other industries, such as various towers, tanks, tanks, spherical containers and boilers and other equipment for the position of the media level indication and automatic control.
Plastic materials PP, PVDF, can be applied to strong acid and alkali places;.
Metal materials are SUS304/316L, which can be used in high temperature 200℃, high pressure 64kg/cm2 places.
The metal float has specifications of ψ45, ψ52, ψ75, etc..
Plastic has ψ48, ψ55, specific gravity from 0.5 ~ 0.8g/cm3.
Output 4 ~ 20mA or resistance 3-wire type, supply voltage 5 ~ 30VDC.
Junction box: stainless steel, aluminum alloy, PC, PP.
Connections are available in tooth type PT, PF, NPT, BSP, flange type JIS, DIN, ANSI and other specifications.
The protection level of the outlet wire or junction box is IP-65 and Ex explosion-proof specifications.
Special specifications can also be customized to meet customer needs.
