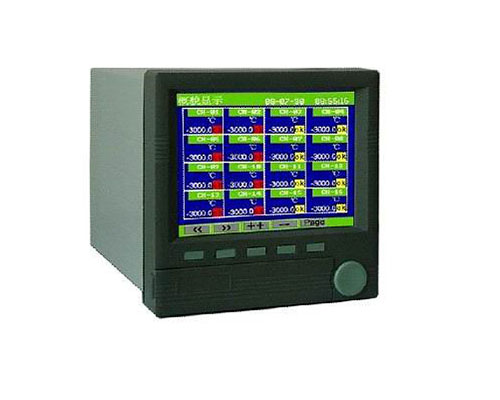

SWP-TSR intelligent TFT true color paperless recorder is an intelligent multi-function secondary instrument newly developed by our company in 2004, which is suitable for monitoring, controlling, recording and data transmission of various process parameters.
SWP-TSR intelligent TFT true color paperless recorder in the design of today's computer absorbed the structure of the idea: hardware using 10.4 inches of true color, high-brightness TFT LCD as a display, with flash memory within the new microprocessor, expanding the large-capacity data storage area, the use of a large-screen LCD graphic board as a display; software introduced into the Chinese WINDOWS frame of mind, the use of data compression technology. The software introduces the framework of Chinese WINDOWS and adopts the data compression technology. The quasi-computerized structure highly reflects the superiority of microprocessorized instrumentation, and successfully integrates a multifunctional color paperless recording instrument that can realize multi-loop parameter monitoring, displaying multiple sets of numbers and graphic curves on the same screen/split screen, and containing a large-capacity data logging storage space in a casing that measures 288 × 288 × 240 mm in volume.The SWP-TSR Intelligent TFT True Color Paperless Recorder has both human-machine operation and observation interfaces. Man-machine operation and observation interface on the traditional mechanical recorder to do a challenging reform: the Chinese menu to guide the configuration of the operation, with a wealth of graphic data to display the measurement process and results, with clear Chinese information to identify the engineering meaning of the content of the screen, with a large-capacity semiconductor memory instead of the traditional recording pen and paper, to overcome the mechanical recorder of all the shortcomings and the cost of consumables, concise and intuitive to give people the “Intelligent” feeling.
