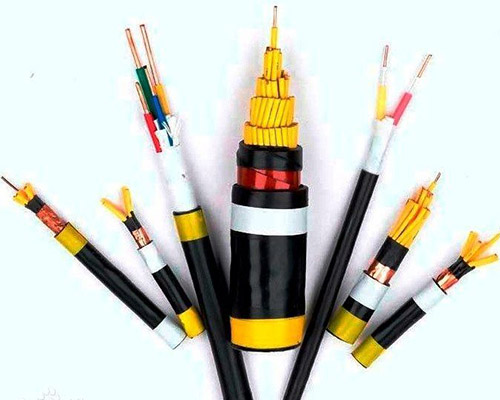

I. Product introduction
This product refers to 1.TICW06-2009 computer and instrumentation cables, 2.GB/T19666-2005 flame-retardant and fire-resistant wires and cables standard production, applicable to the rated voltage of 500V and the following for the high requirements of anti-interference electronic computers and automation connections with the cable. The core insulation of the cable is made of K type B low density polyethylene with oxidation resistance. Polyethylene insulation resistance is high, good voltage resistance, dielectric coefficient is small and dielectric loss temperature and frequency change of the impact is also small, not only to meet the requirements of the transmission performance, but also to ensure that the service life of the cable.
In order to reduce mutual crosstalk between circuits and external interference, the cable adopts a shielded structure. Cable shielding requirements are based on different occasions were used: twisted combination of shielding, twisted composition of the total shielding of the cable, twisted combination of shielding after the total shielding and other methods.
Shielding materials are round copper wire, copper tape, aluminum tape/plastic composite tape three. Shielded pairs and shielded pairs have good insulation properties, the cable in use if the shielded pairs of shielded pairs of potential difference between, will not affect the quality of signal transmission.
Maximum working temperature: 70℃, 90℃, 105℃, 120℃, 180℃, 200℃, 260℃ (according to customer requirements)
Minimum ambient temperature: -42.5℃, -40℃, -25℃, -20℃, -15℃ (according to customer requirements)
Flame retardant grade: ZA (A class flame retardant), ZB (B class flame retardant), ZC (C class flame retardant), ZR (flame retardant)
Conductor structure: Normal for a class 1 single-stranded, such as the need for multi-stranded soft conductor plus (R) or plus (B) for the 2 class 7 root structure
Shielding options: P copper wire, P1 tinned, P2 copper tape, P3 aluminum foil
Fire-resistant: NH, steel tape armored: 22, steel wire armored: 32
Second, the cable type, name and scope of use
|
Model No.
|
Name
|
Scope of use
|
|
DJYVP
|
Polyethylene insulated twisted pair copper braided total shielded polyvinyl chloride sheathed computer cables
|
Fixed laying in the room, cable trench or pipeline
|
|
DJYVP2
|
Polyethylene insulated twisted pair copper tape total shielded polyvinyl chloride sheathed computer cable
|
|
|
DJYVP3
|
Polyethylene insulated twisted aluminum-plastic composite tape total shielded polyvinyl chloride sheath computer cable
|
|
|
DJYPV
|
Polyethylene insulated twisted pair copper braided split shield PVC sheathed computer cable
|
|
|
DJYP2V
|
Polyethylene insulated twisted pair copper tape split shield PVC sheathed computer cable
|
|
|
DJYP3V
|
Polyethylene Insulated Twisted Aluminum Composite Tape Split Shielded Polyvinyl Chloride Sheathed Computer Cable
|
|
|
DJYPVP
|
Polyethylene insulated twisted pair copper wire sub-shielded and total shielded polyvinyl chloride sheathed computer cables
|
|
|
DJYP2VP2
|
Polyethylene insulated twisted pair copper tape sub-shielded and total shielded PVC sheathed computer cables
|
|
|
DJYP3VP3
|
Polyethylene Insulated Twisted Aluminum Plastic Composite Tape Split Shielded and Overall Shielded Polyvinyl Chloride Sheathed Computer Cables
|
|
|
DJYVPR
|
Polyethylene insulated twisted pair copper wire braid total shielded PVC sheathed computer flexible cable
|
Ideal for applications requiring frequent movement or softness
|
|
DJYVP2R
|
Polyethylene insulated twisted pair copper tape total shielded polyvinyl chloride sheathed computer flexible cable
|
|
|
DJYVP3R
|
Polyethylene insulated twisted aluminum-plastic composite tape total shielded polyvinyl chloride sheathed computer flexible cable
|
|
|
DJYPVR
|
Polyethylene insulated twisted pair copper braided split shield PVC sheathed computer flexible cable
|
|
|
DJYP2VR
|
Polyethylene insulated twisted pair copper tape split shield PVC sheathed computer flexible cable
|
|
|
DJYP3VR
|
Polyethylene insulated twisted aluminum-plastic composite tape split shield PVC sheathed computer flexible cable
|
|
|
DJYPVPR
|
Polyethylene insulated twisted pair copper braided cable with split shield and total shield PVC sheath computer flexible cable
|
|
|
DJYP2VP2R
|
Polyethylene insulated twisted pair copper tape sub-shielded and total shielded polyvinyl chloride sheathed computer flexible cable
|
|
|
DJYP3VP3R
|
Polyethylene insulated twisted pairs of aluminum-plastic composite tape sub-shielded and total shielded polyvinyl chloride sheathed computer flexible cable
|
|
|
DJYVP22
|
Polyethylene insulated twisted pair copper wire braid total shielded steel tape armored PVC sheathed computer cable
|
direct burial
|
|
DJYVP2-22
|
Polyethylene insulated twisted pair copper tape general shielded steel tape armored polyvinyl chloride sheathed computer cable
|
|
|
DJYVP3-22
|
Polyethylene insulated twisted pair of aluminum-plastic composite tape total shielded steel tape armored polyvinyl chloride sheathed computer cable
|
|
|
DJYPVP22
|
Polyethylene insulated twisted pair of copper wire braided sub-shielded and general shielded steel tape armored PVC sheathed computer flexible cable
|
|
|
DJYP2VP2-22
|
Polyethylene insulated twisted pair copper tape sub-shielded and general shielded steel tape armored PVC sheathed computer cables
|
|
|
DJYP3VP3-22
|
Polyethylene insulated twisted pairs of aluminum-plastic composite tape sub-shielded and total shielded steel tape armored polyvinyl chloride sheathed computer flexible cable
|
III. Scope of production
|
Model No.
|
Nominal cross section (mm2)
|
logarithmic
|
|
DJYVP、DJYVP2、DJYVP3、DJVPV、DJYP2V、DJYP3V
DJYPVP、DJYP2VP2、DJYP3VP3、DJYVPR、DJYVP2R、DJYVP3R DJYPVR、DJYP2VR、DJYP3VR、DJYPVPR、DJYP2VP2R DJYP3VP3R |
0.50,0.75,1.0,1.50,2.5,4,6
|
1-48
|
|
DJYVP22、DJYVP2-22、DJYVP3-22
DJYPVP22、DJYP2VP2-22、DJYP3VP3-22 |
0.50,0.75,1.0,1.50,2.5,4,6
|
1-48
|
Note: Our company can according to customer site requirements: R & D customized production of various types and specifications of cable.
