I: Product Characteristics and Uses
General use of polyvinyl chloride insulation and sheath compensation wire or cable with excellent moisture resistance, abrasion resistance and flame retardant properties; high-temperature fluorine plastic insulation and sheath compensation wire or cable using continuous extrusion process, more high-temperature resistance, cold resistance, resistance to acid, alkali, oil and water, not delayed combustion, aging resistance and other superiority, product quality is higher than the national standard GB/T4989-94 (the equivalent of the use of IEC584-3) of the provisions of the product.
Intrinsically safe explosion-proof temperature measurement system with compensation wire or cable using low capacitance, low inductance material structure, with explosion-proof safety performance, suitable for explosion-proof thermocouple cold short in explosion-hazardous environments and explosion-proof temperature measurement instrumentation connected to form intrinsically safe thermocouple temperature measurement system.
Second: product implementation standards
GB/T4989-94 (equivalent to IEC584-3 standard)
Third: the use of characteristics
1. The maximum working temperature of the conductor: heat-resistant grade: polyperfluoroethylene propylene (F46) 200 ℃, soluble polytetrafluoroethylene 260 ℃, 180 ℃ silicone rubber
Ordinary grade: polyvinyl chloride 70 ℃ and 105 ℃, cross-linked polyethylene 90 ℃, low-smoke halogen-free flame retardant polyolefin 70 ℃, crosslinked 90 ℃ and 125 ℃
2. Low ambient temperature: PVC sheath: fixed laying -40℃, non-fixed laying -15℃.
Fluorine plastic insulation and sheath: fixed laying -60 ℃, non-fixed laying -20 ℃.
3. Allowable bending radius of the cable: non-armored cable is at least 6 times the outer diameter
Copper tape shielded or steel tape armored point cable minimum 12 times the outer diameter of the cable
Fluorine plastic insulation and sheath for the minimum of 10 times the outer diameter of the cable
Four: basic models and names

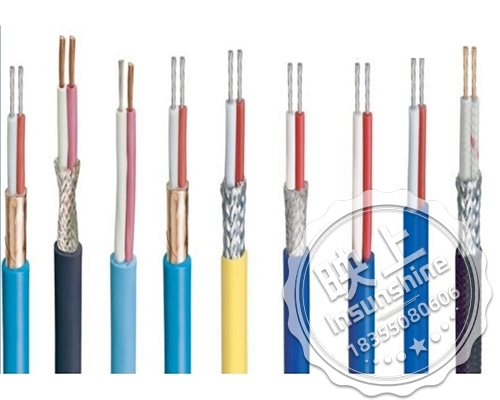

1：Compensation wire for thermocouple
|
KX-GA-VV |
PVC Insulated PVC Sheathed Precision Grade K Gauge Thermocouple Compensation Wire |
|
KX-GA-VVR |
PVC Insulated PVC Sheathed Precision Grade K Gauge Thermocouple Compensating Flexible Wire |
|
KX-GA-VVP |
PVC Insulated PVC Sheathed Copper Braid Shielded Precision Grade K Scale Thermocouple Compensation Wire |
|
KX-GA-VVRP |
PVC Insulated PVC Sheathed Copper Braid Shielded Precision Grade K Gauge Thermocouple Compensating Flexible Wire |
|
KX-HA-FF |
Fluoroplastic Insulated and Sheathed Precision Grade K Division Thermocouple Compensation Wire |
|
KX-HA-FFR |
Fluoroplastic Insulated and Sheathed Precision Grade K Division Thermocouple Compensating Flexible Wire |
|
KX-HA-FFP |
Fluoroplastic Insulated and Sheathed Copper Braid Shielded Precision Grade K Division Thermocouple Compensation Wire |
|
KX-HA-FFRP |
Fluoroplastic Insulated and Sheathed Copper Braid Shielded Precision Grade K Scale Thermocouple Compensating Flexible Wire |
|
KX-HA-FG |
Fluoroplastic Insulated Silicone Rubber Sheathed Precision Grade K Scale Thermocouple Compensation Wire |
|
KX-HA-FGR |
Fluoroplastic Insulated Silicone Rubber Sheathed Precision Grade K Scale Thermocouple Compensating Flexible Wire |
|
KX-HA-FGP |
Fluoroplastic Insulated Silicone Rubber Sheathed Copper Braid Shielded Precision Grade K Scale Thermocouple Compensation Wire |
|
KX-HA-FGRP |
Fluoroplastic Insulated Silicone Rubber Sheathed Copper Braid Shielded Precision Grade K Scale Thermocouple Compensating Flexible Wire |
|
KX-HA-FV |
Fluoroplastic Insulated PVC Sheathed Precision Grade K Scale Thermocouple Compensation Wire |
|
KX-HA-FVR |
Fluoroplastic Insulated PVC Sheathed Precision Grade K Scale Thermocouple Compensating Flexible Wire |
|
KX-HA-FVP |
Fluoroplastic Insulated PVC Sheathed Copper Braid Shielded Precision Grade K Scale Thermocouple Compensation Wire |
|
KX-HA-FVRP |
Fluoroplastic Insulated PVC Sheathed Copper Braid Shielded Precision Grade K Gauge Thermocouple Compensating Flexible Wire |
|
KX-GA-YJV |
Cross-linked polyethylene insulated PVC sheathed precision grade K scale thermocouple compensation wire |
|
KX-GA-YJVR |
Cross-linked polyethylene insulated PVC sheathed precision grade K scale thermocouple compensating flexible wire |
|
KX-GA-YJVP |
Cross-linked polyethylene insulated PVC jacketed copper wire braid shielded precision grade K scale thermocouple compensation wire |
|
KX-GA-YJVRP |
Low Smoke Halogen Free Insulated and Sheathed Copper Braid Shielded Precision Grade K Gauge Thermocouple Compensating Flexible Wire |
|
KX-GA-YDYD |
Low Smoke Halogen Free Insulated and Jacketed Precision Grade K Division Thermocouple Compensation Wire |
|
KX-GA- YDYD R |
Low Smoke Halogen Free Insulated and Jacketed Precision Grade K Division Thermocouple Compensating Flexible Wire |
|
KX-GA- YDYD P |
Low Smoke Halogen Free Insulated and Sheathed Copper Braid Shielded Precision Grade K Scale Thermocouple Compensation Wire |
|
KX-GA- YDYD RP |
Low Smoke Halogen Free Insulated and Sheathed Copper Braid Shielded Precision Grade K Gauge Thermocouple Compensating Flexible Wire |
|
Note: The above model number only lists KX, others such as SC, KC, EX, BC, TX, JX only need to change the model number of the first item can be.
Add ZR before the model number of flame retardant compensation wire, ZR192 is imported PFA material.
P1 shielding can be tinned copper wire shielding.
|
|
2: Compensation wire for intrinsically safe thermocouples
|
IA-KX-GA-YVP |
Polyethylene Insulated PVC Sheathed Copper Braid Shielded Precision Grade K Gauge Intrinsically Safe Thermocouple Compensation Wire |
|
IA-KX-GA-YVRP |
Polyethylene Insulated PVC Sheathed Copper Braid Shielded Precision Grade K Gauge Intrinsically Safe Thermocouple Compensating Flexible Wire |
|
IA-KX-HA-FFP |
Fluoroplastic Insulated and Sheathed Copper Braid Shielded Precision Grade K Division Intrinsically Safe Thermocouple Compensation Wire |
|
IA-KX-HA-FFRP |
Fluoroplastic Insulated and Sheathed Copper Braid Shielded Precision Grade K Division Intrinsically Safe Thermocouple Compensating Flexible Wire |
|
IA-KX-HA-FGP |
Fluoroplastic Insulated Silicone Rubber Sheathed Copper Braid Shielded Precision Grade K Division Intrinsically Safe Thermocouple Compensation Wire |
|
IA-KX-HA-FGRP |
Fluoroplastic Insulated Silicone Rubber Sheathed Copper Braid Shielded Precision Grade K Division Intrinsically Safe Thermocouple Compensating Flexible Wire |
|
Note: The above model number only lists KX, others such as SC, KC, EX, NC, TX, JX only need to change the first item of the model number.
Flame retardant type add ZR in front of model number, ZR192 is imported PFA material.
P1 shielding can be tinned copper wire shielding.
|
|
3: Compensation cable
|
KX-GA-VVP |
PVC insulated and sheathed copper wire braided total shielded precision grade K-index thermocouple compensation cable |
|
KX-GA-VVRP |
PVC insulated and sheathed copper wire braided total shielded compensating flexible cable for thermocouples of precision grade K divisions |
|
KX-GA-VPVP |
PVC insulated and sheathed copper wire braided split screen plus total shield precision grade K scale thermocouple compensating cables |
|
KX-GA-VPVRP |
PVC insulated and sheathed copper wire braided split screen plus total shielded compensating flexible cable for thermocouples of precision grade K divisions |
|
KX-GA-YJVP |
Cross-linked polyethylene insulated PVC sheathed copper wire braided total shielding precision grade K scale thermocouple compensation cable |
|
KX-GA-YJVRP |
Cross-linked polyethylene insulated PVC sheathed copper wire braided total shielded compensating flexible cable for thermocouples of precision grade K scale |
|
KX-GA-YJPVP |
Cross-linked polyethylene insulated PVC sheathed copper wire braided split screen with total shield Precision grade K index thermocouple compensation cable |
|
KX-GAYJPVRP |
Cross-linked polyethylene insulated polyvinyl chloride sheathed copper wire braided split screen with total shield Compensating flexible cable for precision grade K scale thermocouples |
|
KX-HA-FFP |
Fluoroplastic olefin insulated and sheathed copper wire braided total shielded precision grade K scale thermocouple compensation cable |
|
KX-HA-FFRP |
Fluoroplastic olefin insulated and sheathed with copper wire braid total shielding Compensating flexible cables for thermocouples of precision grade K divisions |
|
KX-HA-FPFP |
Fluoroplastic insulated and sheathed copper wire braided split screen with total shielding Compensating cables for thermocouples of precision grade K divisions |
|
KX-HA-FPFRP |
Fluoroplastic insulated and sheathed copper wire braided split screen with total shielding Compensating flexible cables for precision grade K-index thermocouples |
|
KX-HA-FVP |
Fluoroplastic olefin insulated polyvinyl chloride sheathed copper wire braided total shielded precision grade K scale thermocouple compensation cable |
|
KX-HA-FVRP |
Fluoroplastic olefin insulated PVC sheathed copper wire braided total shielded compensating flexible cable for thermocouples of precision grade K grades |
|
KX-HA-FPVP |
Fluorine plastic insulation PVC sheath copper wire braid split screen plus total shield precision grade K scale thermocouple compensation cable |
|
KX-HA-FPVRP |
Fluorine plastic insulation PVC sheath copper wire braid split screen plus total shield precision grade K scale thermocouple compensation flexible cable |
|
KX-HA-FGP |
Fluoroplastene Insulated Silicone Rubber Sheathed Copper Braided Total Shielded Compensating Cable for Precision Grade K Division Thermocouples |
|
KX-HA-FGRP |
Fluoroplastene Insulated Silicone Rubber Sheathed Copper Wire Braided Total Shielded Compensating Flexible Cable for Precision Grade K Scale Thermocouples |
|
KX-HA-FPGP |
Fluoroplastic Insulation Silicone Rubber Sheath Copper Wire Braid Split Screen Plus Total Shield Precision Grade Compensating Cables for K Division Thermocouples |
|
KX-HA-FPGRP |
Fluoroplastic Insulation Silicone Rubber Sheath Copper Wire Braid Split Screen with Total Shield Compensating Flexible Cable for Precision Grade K Scale Thermocouples |
|
Note: 1 The above basic model only lists the copper wire or tinned wire shielding, other shielding type models only need to change the shielding code can be, such as P1, P2, P3
2 flame retardant type in front of the model plus ZR, armored cable model plus 22, ZR192 for the import of PFA materials, temperature resistance of 260 ° C.
|
|
4: Intrinsically safe compensation cable
|
IA-KX-GA-FPVP |
Fluorine plastic insulation PVC sheath copper wire braid split screen plus total shielding precision grade K index intrinsically safe thermocouple compensation cable |
|
IA-KX-GA-FPVRP |
Fluoroplastic Insulation PVC Sheath Copper Wire Braid Split Screen with Total Shield Precision Grade K Division Intrinsically Safe Thermocouple Compensating Flexible Cable |
|
IA-KX-HA-FPFP |
Fluorine plastic insulated and sheathed copper wire braided split screen with total shield Precision grade K index intrinsically safe thermocouple compensation cable |
|
IA-KX-HA-FPFRP |
Fluorine plastic insulated and sheathed copper wire braided split screen with total shield Precision grade K index intrinsically safe thermocouple compensating flexible cable |
|
IA-KX-HA-FPGP |
Fluoroplastic Insulation Silicone Rubber Sheath Copper Wire Braid Split Screen with Total Shield Precision Grade K Division Intrinsically Safe Thermocouple Compensating Cable |
|
IA-KX-HA-FPGRP |
Fluoroplastic Insulation Silicone Rubber Sheath Copper Wire Braid Split Screen with Total Shield Precision Grade K Division Intrinsically Safe Thermocouple Compensating Flexible Cable |
|
Note: 1 The above basic model only lists the copper wire or tinned wire shielding, other shielding type models only need to change the shielding code can be, such as P1, P2, P3
2 flame retardant type in front of the model plus ZR, armored cable model plus 22, ZR192 for the import of PFA materials, temperature resistance of 260 ° C.
|
|
V: Designations and meanings of codes
|
sports event |
nicknames |
clarification |
|
|
Flame retardant properties |
ZR |
ZA (Class A Flame Retardant), ZB (Class B Flame Retardant), ZC (Class C Flame Retardant), ZR Grade (Flame Retardant) |
|
|
Series Code |
IA |
None (intrinsically safe) |
|
|
insulating material |
Y |
polyethylene |
|
|
|
YJ |
crosslinked polyethylene |
|
|
|
YD |
Low Smoke Halogen Free Flame Retardant Polyolefin |
|
|
|
F |
Polyperfluoroethylene propylene (F46) or soluble polytetrafluoroethylene (PFA) |
|
|
|
Sheath material |
YD |
Low Smoke Halogen Free Flame Retardant Polyolefin |
|
|
V |
polyvinyl chloride (PVC) |
|
|
|
F |
Polyperfluoroethylene propylene (F46) or soluble polytetrafluoroethylene (PFA) |
|
|
|
G |
silicone rubber |
|
|
|
shielding material
A |
P |
copper braid shielding |
|
|
P1 |
Tinned braided shielding |
|
|
|
P2 |
copper tape-wound shielding |
|
|
|
P3 |
Aluminum-plastic composite tape wrap shielding |
|
|
|
conductor structure |
single conductor |
|
|
|
B |
7 Stranded Conductor |
|
|
|
R |
Multi-stranded conductors |
