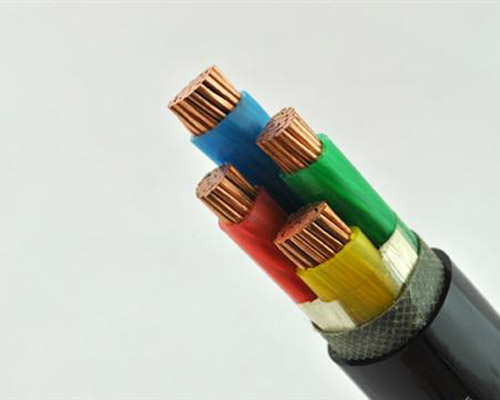

I: Product features and uses: This product is suitable for AC rated voltage 0.6/1KV power units and power lines for transmission of electrical energy. Low-smoke halogen-free flame-retardant insulated and sheathed cables are environmentally friendly cables, suitable for high-rise buildings, railroads and other industries with special requirements for fire and other occasions.
Second: product implementation standards
GB12706.1-91, GB12706.2-91 is equivalent to IEC502 standard.
Flame retardant properties test GB12666-90 standard.
Third: Use of characteristics
|
Usage characteristics
|
PVC insulation
|
|
|
rated voltage
|
0.6/1
|
|
|
Maximum Conductor Operating Temperature
|
70℃
|
|
|
Short-circuit temperature (continuous up to 5s)
|
≤160℃
|
|
|
Ambient temperature at laying
|
≥0℃(Below 0°C preheating is required)
|
|
|
Allowable bending radius when laying
|
single-core cable
|
Not less than 15 times the outer diameter of the cable
|
|
multicore cable
|
Not less than 10 times the outer diameter of the cable
|
|
|
Flame retardant properties
|
Comply with GB12666.5 A or B (IEC332-3)
|
|
IV: Basic Models and Names
Table 1
|
model number
|
产品名称Pseudolaric acid
|
|
|
ZR-VV
|
PVC insulated PVC sheathed flame retardant power cable
|
|
|
ZR-VV22
|
PVC Insulated Steel Tape Armored PVC Sheathed Flame Retardant Power Cable
|
|
|
ZR-VDVD
|
PVC Insulated PVC Sheathed Low Smoke Low Halogen Flame Retardant Power Cable
|
|
|
ZR-YDYD
|
Low smoke halogen free polyolefin insulated and sheathed power cables
|
|
|
ZR-KVV
|
Copper core PVC insulated PVC sheathed flame retardant control cable
|
|
|
ZR-KVVP
|
Copper core PVC insulated PVC sheathed copper wire braided flame retardant shielded control cable
|
|
|
ZR-KVVP2
|
Copper core PVC insulated PVC sheathed copper tape shielded flame retardant control cable
|
|
|
ZR-KVV22
|
Copper core PVC insulated PVC sheathed steel tape armored flame retardant control cable
|
|
|
ZR-KVVR
|
Copper core PVC insulated PVC sheathed flame retardant control flexible cable
|
|
|
ZR-KVVRP
|
Copper core PVC insulated PVC sheathed copper wire braided shielded flame retardant control flexible cable
|
|
|
ZR-KVVP2-22
|
Copper core PVC insulated PVC sheathed copper tape shielded steel tape armored flame retardant control cable
|
|
|
ZR-KYY
|
Copper core low smoke halogen free flame retardant polyolefin insulated and sheathed control cable
|
|
|
ZR-KYYR
|
Copper core low smoke halogen free flame retardant polyolefin insulated and sheathed control flexible cable
|
|
|
ZR-KYYP
|
Copper core low smoke halogen free flame retardant polyolefin insulated and sheathed copper wire braided shielded control cable
|
|
|
ZR-KYYRP
|
Copper core low smoke halogen free flame retardant polyolefin insulated and sheathed copper wire braided shielded control flexible cable
|
|
|
ZR-KYYP2
|
Copper core low smoke halogen free flame retardant polyolefin insulated and sheathed copper tape shielded control cable
|
|
|
ZR-KYY RP2
|
Copper core low smoke halogen free flame retardant polyolefin insulated and sheathed copper tape shielded control flexible cable
|
|
|
ZR-KYY-22
|
Copper core low smoke halogen free flame retardant polyolefin insulated and sheathed steel tape armored control cable
|
|
|
ZR-KYYP22
|
Copper core low smoke halogen free flame retardant polyolefin insulated and sheathed copper wire braided shielded steel tape armored control cable
|
|
|
ZR-KYYP2-22
|
Copper core low smoke halogen free flame retardant polyolefin insulated and sheathed copper tape shielded steel tape armored control cable
|
|
|
Note: The insulation and sheath in the basic model also have YDJ low-smoke halogen-free flame-retardant cross-linked polyolefin.
|
|
|
|
|
|
|
Remarks: The copper wire in the conductor core can be tinned P1.
V: Code name and meaning
Table 2
|
nicknames
|
Code Name Meaning
|
|
Flame retardant properties
|
|
|
-
|
non-flame retardant
|
|
Flame retardant grade
|
Class A (ZA), Class B (ZB), Class C (ZC), Flame Retardant (ZR)
|
|
NH
|
Fire-resistant cables
|
|
isolate
|
|
|
V polyvinyl chloride
|
Y (polyethylene) YJ (cross-linked polyethylene), F (fluoroplastics) F4 (vinylidene fluoride), G (silicone rubber)
|
|
sleeve
|
|
|
V
|
V polyvinyl chloride, G (silicone rubber), F (fluoroplastic)
|
|
WD
|
Low Voltage Halogen Free Flame Retardant Polyolefin
|
|
VD
|
Low Smoke Low Halogen Flame Retardant Polyvinyl Chloride
|
|
armour
|
|
|
22
|
Double Steel Tape Armor
|
|
32
|
Fine steel wire armor
|
|
42
|
Coarse steel wire armor
|
VI: Main technical indicators
1. Finished cable conductor (class R) DC resistance (in accordance with GB3956) see appendix table 1.
2. Industrial frequency voltage test: AC 50HZ3.5KV/5min without breakdown
Seven: basic cable specifications and structural parameters
1: 0.6/1KV single-core cross-linked polyethylene insulation PVC sheathed power cable
Note: Our company can according to customer site requirements: R & D customized production of various types and specifications of cable.
