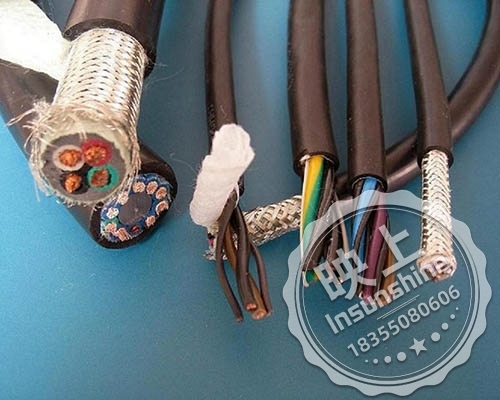

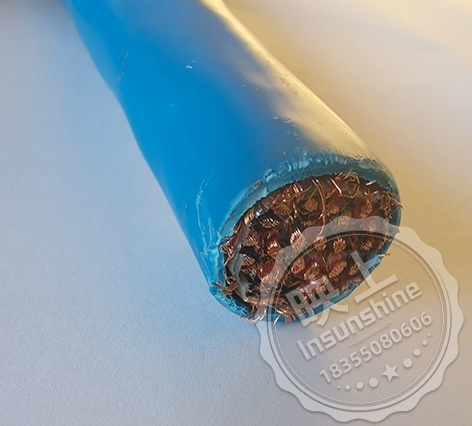

Computer flame retardant shielded cable ZR-IA-DJYJPVRP 12 * 2 * 1.5 for intrinsic safety circuits
High temperature computer flame-retardant shielded cable
1： Product Features and Applications
This product has low capacitance and low inductance, excellent shielding performance and anti-interference performance. The special high-temperature computer cable is made of imported fluoroplastics and fluororubber materials, and can be used for a long time in an environment of -40-260 ℃. The product has superior characteristics such as non flammable, acid, alkali and oil-water resistance. The cable structure is specially designed for intrinsically safe explosion-proof circuits, not only for bridge laying, but also for cable trench laying and direct burial laying. The special high-temperature intrinsically safe computer cable is professional and reliable. Suitable for use as transmission lines in distributed systems and automated detection systems with explosion-proof protection requirements and other harsh environments, with excellent explosion-proof safety performance.
2： Product execution standards
Q/GS08-2015
Flame retardant according to GB12666-90 standard
3： Usage characteristics
1. Rated AC voltage: U0/U 300/500KV
2. Maximum operating temperature: Polyethylene insulation not exceeding 70 ℃
Cross linked polyethylene insulation at 90 ℃
Low smoke halogen-free flame-retardant polyolefin at 70 ℃
Low smoke halogen-free flame-retardant cross-linked polyolefin at 90 ℃ and 125 ℃
DifluoroF4 at 120 ℃
Perfluoroethylene propylene (F46) insulation not exceeding 200 ℃
Imported soluble polytetrafluoroethylene (PFA) not exceeding 260 ℃
Fire resistance: NH 、 Steel belt armor: 22, steel wire armor: 32
Flame retardant grades: ZA (Class A flame retardant), ZB (Class B flame retardant), ZC (Class C flame retardant), ZR (flame retardant)
Shielding options: P copper wire, P1 tin plated, P2 copper tape, P3 aluminum foil
3. Minimum ambient temperature: PVC sheath: fixed installation -40 ℃, non fixed installation -15 ℃
Fluoroplastic and silicone rubber sheath: fixed installation -60 ℃, non fixed installation -25 ℃.
4. The temperature for cable installation and laying should not be lower than 0 ℃ (high temperature type should not be lower than -25 ℃).
5. Allowable bending radius for cables: The minimum allowable bending radius for non armored cables is 6 times the outer diameter of the cable
The minimum requirement for copper tape shielded or steel tape armored cables is 12 times the outer diameter of the cable
4： Basic model and name
1. Polyethylene insulated PVC sheathed intrinsically safe circuit and computer shielded cable (including intrinsically safe DCS cable)
|
IA-DJYPVRP |
Polyethylene insulated copper wire braided split screen total screen PVC sheathed intrinsically safe computer shielded (flexible) cable |
|
IA-DJYP2VRP2 |
Polyethylene insulated copper plastic composite tape wrapped sub screen copper tape total screen polyvinyl chloride sheath intrinsically safe computer shielded (flexible) cable |
|
IA-DJYP3VRP3 |
Polyethylene insulated aluminum-plastic composite tape wrapped split screen total screen PVC sheathed computer shielded (soft) cable |
|
Add ZR before the model number for flame-retardant computer cables, add 22 after the armored cable model number, and tin plated copper wire can be used for shielding. The basic model number is slightly larger |
|
2. Cross linked polyethylene insulated polyvinyl chloride sheathed shielded cables for computers (including DCS cables)
|
IA-DJYJPVRP |
Cross linked polyethylene insulated copper wire braided split screen total screen polyvinyl chloride sheathed intrinsically safe computer shielded (flexible) cable |
|
IA-DJYJP2VRP2 |
Cross linked polyethylene insulated copper tape wrapped split screen total screen polyvinyl chloride sheathed intrinsically safe computer shielded (flexible) cable |
|
IA-DJYJP3VRP3 |
Cross linked polyethylene insulated aluminum-plastic composite tape wrapped, split screen, total screen, polyvinyl chloride sheath, intrinsically safe computer shielded (soft) cable |
|
Add ZR before the model number for flame-retardant computer cables, add 22 after the armored cable model number, and tin plated copper wire can be used for shielding. The basic model number is slightly larger |
|
3. Low smoke halogen-free flame-retardant polyolefin insulated and sheathed shielded cables for computers (including DCS cables)
|
IA-DJYDPYDRP |
Low smoke halogen-free flame-retardant polyolefin insulated and sheathed copper wire braided split screen total screen intrinsically safe computer shielded (flexible) cable |
|
IA-DJYDP2YDRP2 |
Low smoke halogen-free flame-retardant polyolefin insulated and sheathed copper wire braided split screen total screen intrinsically safe computer shielded (flexible) cable |
|
IA-DJYDP3YDRP3 |
Low smoke halogen-free flame-retardant polyolefin insulated and sheathed copper wire braided split screen total screen intrinsically safe computer shielded (flexible) cable |
|
Add ZR before the model number for flame-retardant computer cables, add 22 after the armored cable model number, and tin plated copper wire can be used for shielding. The basic model number is slightly larger |
|
4.Fluoroplastic insulated intrinsically safe high-temperature and corrosion-resistant computer cable
|
IA-DJF46PVP |
F46 insulated PVC sheathed copper wire braided split screen and total screen intrinsically safe high-temperature and anti-corrosion computer cable |
|
IA-DJF46PVRP |
F46 insulated PVC sheathed copper wire braided split screen and total screen intrinsically safe high-temperature and anti-corrosion computer flexible cable |
|
IA-DJF46GPG |
F46 insulated silicone rubber sheathed copper wire braided split screen and total screen intrinsically safe high-temperature and anti-corrosion computer cable |
|
IA-DJF46GPGR |
F46 insulated silicone rubber sheathed copper wire braided split screen and total screen intrinsically safe high-temperature and anti-corrosion computer flexible cable |
|
IA-DJF4F46P-2 |
F46 insulated and sheathed copper strip split screen and total screen intrinsically safe high-temperature and anti-corrosion computer cable |
|
IA-DJF4F46P2-2 |
F46 insulated and sheathed copper strip split screen and total screen intrinsically safe high-temperature and anti-corrosion computer cable |
|
Add ZR before the model for flame-retardant computer cables and 22 after the model for armored cables. The basic model is the same as above. |
|
