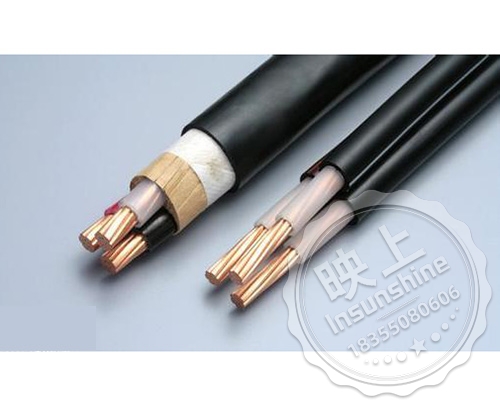

Silicone rubber high temperature resistant power cable

  I: Product characteristics and use:

  This product is suitable for AC rated voltage 0.6/1KV and the following fixed laying with power transmission line or mobile electrical appliances with connecting cables, the product has heat radiation, cold, acid and alkali and corrosive gases, waterproof and other characteristics of the cable structure is soft, easy to radiate, high-temperature (high cold) environment of stable electrical performance, anti-aging performance is outstanding, long service life, is widely used in metallurgy, electric power, petrochemical, electronics, It is widely used in metallurgy, electric power, petrochemical, electronics, automobile manufacturing and other industries.

  Second: product implementation standards

  Q/HHTZH001.1

  Flame-retardant and fire-resistant characteristics test GB12666-90 requirements

  Third: Use of characteristics

  1. AC rated voltage: U0/U 0.6/1KV

  Maximum working temperature: 180℃

  Minimum ambient temperature: fixed laying -60°C

  2. Cable installation and laying temperature should not be lower than -25℃.

  3. Allowable bending radius of the cable: cable minimum 10 times the outer diameter of the cable

  IV: Basic Model and Name

  Remarks: Add ZR before the model number of flame retardant silicone rubber cable, and the copper wire in the conductor core can be tinned.

  V: Code name and meaning

  VI: Main technical indicators

  1. Finished cable conductor (class R) DC resistance (in accordance with GB3956) refer to Appendix A, Table 1 and Table 2.

  2. 20 ℃ when the insulation resistance is not less than 100MΩ/KM

  3. The finished cable is subjected to AC 50HZ3.5KV/5min voltage test without breakdown.
