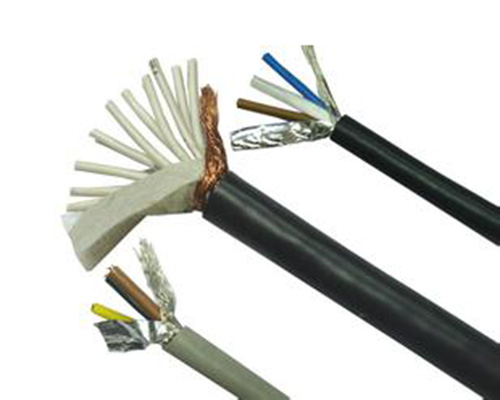

Shielded cables for electronic computers are insulated with high-voltage polyethylene with small dielectric constant. The use of twisted pairs, pairs of screens, total screen (or three-wire combination, group shielding, group screen total screen) and other structural forms, with small dielectric loss, transmission of the number of strong transmission capacity, good anti-jamming properties, etc., can reliably transmit weak analog signals, can be widely used in power generation, metallurgy, petroleum, chemical industry, textiles and other sectors of the detection and control of computer systems or automation devices, as well as the general industrial computers.
Model/Name/Performance
| model number | Cable Name | Laying method |
| DJYPV | Copper core polyethylene insulated, twisted copper wire braided shield, PVC sheathed electronic computer cable |
1、Fixed laying in indoor, cable trench or pipeline. 2、Long-term working temperature of the cable: -20oC~65oC3, cable laying temperature is not less than 0OC, bending radius is not less than 10 times of the cable outer diameter.
|
| DJYP2V | Copper core polyethylene insulated, twisted copper tape screened, PVC sheathed electronic computer cable | |
| DJYP3V | Copper core polyethylene insulated, twisted aluminum/plastic film composite shield, PVC sheathed computer cable | |
| DJYP2VP2 | Copper core polyethylene insulated, twisted copper tape shielded, copper tape overall shielded PVC sheathed computer cable | |
| DJYP3VP3 | Copper core polyethylene insulated, twisted aluminum/plastic film composite shield, aluminum/plastic film composite tape total shield, PVC sheathed electronic computer cable | |
| DJYPV22 | Copper core polyethylene insulated, twisted copper wire braided shield, steel tape armored/polyvinyl chloride sheathed computer cable | |
| DJYP2V22 | Copper core polyethylene insulated, twisted copper tape shielded, steel tape armored/, PVC sheathed electronic computer cable | |
| DJYP3V22 | Copper core polyethylene insulated, twisted aluminum/plastic composite tape shielded/steel tape armored/, PVC sheathed electronic computer cable | |
| DJYP2V22P2 | Copper core polyethylene insulated, twisted copper tape shielded, copper tape total shield/steel tape armored/polyvinyl chloride sheathed computer cable | |
| DJYP3V22P3 Copper core polyethylene insulated, twisted aluminum/plastic composite tape shielded, aluminum/plastic composite tape total shielded/steel tape armored, PVC sheathed electronic computer cable |
Model Specification
|
model number |
Rated voltage U./V |
logarithms |
Nominal cross-section |
|
DJYPV DJYP2V DJYP3V |
300/500 |
1,2,3,4,5,6,7,8,9,10, 12,14,16,19,24,27,30,37 |
0.75,0.8,1.0, 1.5,2.5 |
|
DJYP2VP2 DJYP3VP3 |
2,3,4,5,7,8,9,10,12,14, 16,19,24,27, 30,37 |
||
|
DJYPV22 DJYP2V22 DJYP3V22 DJYP2V22P2 DJYP3V22P3 |
1,2,3,4,5,6,7,8,9,10,12, 14,16,19,24,27,30,37 |
Model Naming Method
1. electronic computer cable product model is in accordance with the wire, cable product modeling method to determine it is composed of the following parts.
|
Category/use |
optoelectronics |
isolate |
internal protection layer |
hallmark |
protective layer |
---- |
derive (from raw material) |
例如：
|
DJ |
Y |
P |
V |
2.Copper (strip) |
|
electronic computer |
(Copper conductors omitted) Polyethylene |
block (sth. or sb) |
polyvinyl chloride (PVC) |
|
Technical characteristics
1, fire-resistant cable outer diameter, cross-section 25mm2, and the following than ordinary similar models of product specifications 15%, cross-section 25mm2 or more than ordinary similar models of product specifications than 25% larger.
2, the electrical properties and physical and mechanical properties of the product and the same as ordinary similar products.
3, fire-resistant cable and similar types of cables with the same current-carrying capacity.
4、Fire-resistant test standard adopts IEC331.
