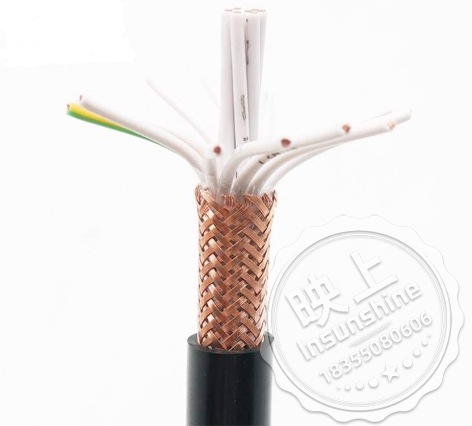

ZC-RVVP is a soft conductor PVC insulated wire plus shield and PVC sheath multi-core soft wire.
Product Name Basics
Copper core PVC insulated and shielded PVC sheathed flexible cable, also called electrical connection anti-interference flexible cable, rated voltage 300/300V, the number of cores commonly used core 2-24 cores, commonly used core wire diameter: 0.12 square, 0.2 square, 0.3 square, 0.4 square, 0.5 square, 1.0 square, 1.5 square, 2.5 square, 4 square, 6 square and so on.
parameters
1、RVVP executive standard JB/T8734.5-2012
2、V Polyvinyl chloride insulation
3、V polyvinyl chloride sheath
4、R conductor for multi-core annealed bare copper stranded
5, more than two cores stranded into a cable
6、Copper wire shielding or tinned shielding after cable formation
7、Copper tape shielding or aluminum foil shielding can also be used after cable formation.
8、Rated voltage is 300/500V.
9、Normal working temperature does not exceed 70℃.
10、Products CCC certification
11.ZC means class C flame-retardant, ZA means class A flame-retardant, ZB means class B flame-retardant, ZR means flame-retardant.
12.NH means fire resistant
Scope of Application
Compared with RVV cable, RVVP cable has better EMC characteristics due to the adoption of copper braided shielding, so it is especially suitable for installation in places with poorer electromagnetic environment and smaller installation distance. RVVP cable can be installed in the bridge, hose, for indoor installation.
Use: Instruments, meters, intercom, monitoring, control installation, audio broadcasting.
Scope of application
Suitable for AC rated voltage 300/300V and the following electrical appliances, instruments and electronic equipment and automation devices and other shielding lines
Executive standard JB8734.5-2016
Use characteristics Rated voltage: 300/300V
